LC101-KB-H-FB | Industrial Broadcasting SOS Phone (Analog, SIP, 4G) | Heavy-Duty Outdoor Emergency Telephone with Horn & Beacon | IP67 (NEMA 4X equivalent) | CE, FCC, RoHS, IK10, ISO 9001
The Industrial Broadcasting SOS Phone is a heavy-duty outdoor emergency telephone engineered for critical voice communication and loud broadcast alerting in high-noise, harsh industrial and public environments.
Designed for wall mounting, it combines emergency telephony, audible broadcasting, and high-visibility signaling in a single rugged enclosure.
This Industrial Broadcasting SOS Phone is purpose-built for factories, power plants, mining sites, ports, tunnels, transport infrastructure, and other safety-critical locations where standard telephones are ineffective.
Key Features
Industrial Broadcasting & Emergency Alerting
Powerful 110 dB+ external horn speaker with built-in amplifier for high-noise environments
Horn activation after 1–9 rings (configurable)
Horn automatically stops when the handset is lifted or the call ends
Supports SIP paging and group broadcasting for emergency announcements (on demand foe SIP version only)
High-Visibility Signaling
High-intensity LED beacon with 360° visibility
Flash rate: 60 flashes per minute
Beacon activates during incoming calls and active communication
Direct & Reliable Communication
Full numeric keypad with programmable auto-dial buttons
Noise-cancelling handset microphone ensures clear voice transmission
Auto-answer after 5 rings with automatic line release
Rugged Construction for Harsh Environments
Corrosion-resistant die-cast aluminum housing
Epoxy powder coating, industrial-grade finish
Environmental protection: IP67 – dust-tight and waterproof
IP67 protection equivalent to NEMA 4X, suitable for outdoor, wash-down, and corrosive environments
Protective front door for additional mechanical protection
Designed for long MTBF> 50,000 hours (4.7 years) under normal operating conditions and continuous industrial operation
Connectivity Options
Choose the required version during checkout:
Analog Version
Standard 2-wire PSTN / PABX
Phone Line-powered (no external power required)
External DC 12V for Horn and Beacon

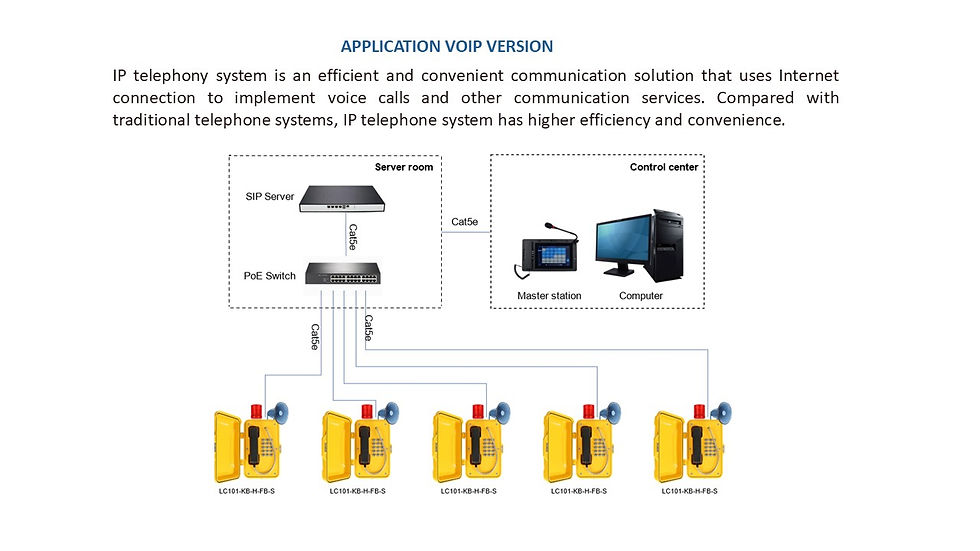

SIP (VoIP) Version
Native SIP 2.0 (RFC 3261)
PoE (802.3af / 802.3at) and external DC 12V for Horn and Beacon
Web-based configuration and diagnostics
Supports SIP paging and group broadcast on demand
4G LTE Version
Cellular operation via SIM card
Ideal for remote or infrastructure-free locations
External power supply included
Optional solar power and backup battery available
Relay Output & System Integration
Built-in relay output for external device control
Allows activation of:
Additional sirens
External beacons
Warning lights
Integration with safety or alarm systems
Certifications & Compliance
CE
FCC (USA & Canada compliance)
RoHS
IK10 impact resistance
IP67 (NEMA 4X equivalent)
Manufactured under ISO 9001 certified quality system
Installation & Mounting
Wall or pole mounted design for solid outdoor or industrial installation
Device Weight: 6 kg / approx. 13.2 lbs.
Mounting Bracket: Heavy-duty brackets included.
Included Power Adapter: 120-220V AC to 12V DC power supply unit is included in the package.
Standard Power Cord: Two-core cored wire, standard length 1 meter (approx. 3.3 ft). Custom lengths are available upon request.
Horn & Beacon Connection: The cable for the loudspeaker (horn) and flashing beacon is pre-installed, routed through a protective cable gland, and has a length of 2 meters (approx. 6.6 ft).
Secure cable entry to protect wiring
Suitable for indoor and outdoor environments
Typical Applications
Heavy industry and manufacturing plants
Power stations and electrical substations
Mining sites, tunnels, and underground facilities
Ports, cranes, terminals, and logistics hubs
Rail platforms, highways, bridges, and transport infrastructure
Outdoor industrial safety zones
Customization Options
Standard housing color: Yellow
Optional colors: Orange, Red, Green, Blue, Black (MOQ applies)
Beacon color options: Red (standard), Blue, Yellow, Green
Custom inscriptions, labels, or safety markings available
LED display
Direct buttons
Order Information
LC101-KB-H-FB-A – Industrial Broadcasting SOS Phone, External Horn and Beacon included, Analog Version
LC101-KB-H-FB-S – Industrial Broadcasting SOS Phone, External Horn and Beacon included, SIP (VoIP) Version
LC101-KB-H-FB-4G – Industrial Broadcasting SOS Phone, External Horn and Beacon include, 4G LTE Version
Why Choose This Industrial Broadcasting SOS Phone
Combines emergency telephony + loud broadcasting + visual alerts
110 dB+ horn and high-intensity LED beacon ensure awareness in extreme conditions
Available in Analog, SIP, and 4G versions
MTBF> 50,000 hours (4.7 years)
IP67 / NEMA 4X equivalent for harsh outdoor environments
Engineered for industrial safety systems and long service life
Trusted solution for professional industrial buyers and project engineers
LC101-KB-H-FB Industrial Broadcasting SOS Phone w. Horn&Beacon (Analog, SIP,4G)
Power & Consumption:
-
Analog: powered by telephone line for the phone; external 24–65 V DC for lamp and horn
-
SIP: PoE or 12 V DC for the phone, 12 V DC for lamp and horn
-
4G: 12 V DC
-
Low power consumption in idle mode, higher during active calls
Communication & Protocols:
-
Analog: standard analog phone, DTMF dialing
-
SIP: SIP 2.0, supports G.711, G.722, G.723, G.729 codecs
-
4G: full duplex, remote programming via SMS
-
Ringer: 80–110 dB(A) with external horn depending on model, visual alert via flashing beacon
4G Frequency Bands:
-
A Version: WCDMA/HSDPA 850/1900 MHz, GSM/GPRS/EDGE 850/900/1800/1900 MHz
-
E Version: UMTS/HSDPA 900/2100 MHz, GSM/GPRS/EDGE 850/900/1800/1900 MHz
-
J Version: UMTS/HSDPA 850(800)/2100 MHz, GSM/GPRS/EDGE 850/900/1800/1900 MHz
Keypad & Controls:
-
Full keypad with memory, buttons 0–9 programmable as speed-dial
-
Additional: LR – last number redial, R – flash, M – mute
-
Auto-answer after 5 rings with automatic line release
Environmental & Physical:
-
Protection: IP67 (NEMA 4X equivalent)
-
Operating temperature: -40 °C to +70 °C (-40 °F to +158 °F)
-
Storage temperature: -45 °C to +85 °C (-49 °F to +185 °F)
-
Vandal-resistant handset and armored cord
Design & Installation:
-
Standard color: Yellow; other colors available on request
-
Beacon color: Red; other colors available on request
-
Mounting: wall or pole, easy installation
-
Hearing accessibility: built-in inductive coupler
Dimensions & Weight:
-
339 × 246 × 126 mm (13 × 10 × 5 inches)
-
Up to 6 kg (13.2 lb)
Compliance:
-
CE, FCC, RoHS, ISO9001 certified
Installation Data
Weight & Mounting Dimensions
-
Device Weight: 6 kg / approx. 13.2 lbs.
-
Mounting Bracket: Heavy-duty integrated brackets included.
Power Supply & Connectivity
-
Standard Power Cord: Two-core cored wire, standard length 1 meter (approx. 3.3 ft). Custom lengths are available upon request.
-
Included Power Adapter: 120-220V AC to 12V DC power supply unit is included in the package.
-
4G Model Specifics:
-
Power Cord: 0.5m / approx. 1.6 ft (can be extended upon request).
-
Antenna Cable: 2m / approx. 6.6 ft.
-
External Components & Pre-Installed Cables
-
Horn & Beacon Connection: The cable for the loudspeaker (horn) and flashing beacon is pre-installed, routed through a protective cable gland, and has a length of 2 meters (approx. 6.6 ft).
-
Network/Line Connection:
-
SIP (VoIP) Model: Pre-installed Cat 6 cable, length 1.5–2 meters (approx. 4.9–6.6 ft).
-
Analog Model: Pre-installed two-core cable, length 1.5–2 meters (approx. 4.9–6.6 ft).
-
Installation Recommendations
To ensure the longest service life and maximum reliability in harsh industrial environments, we recommend following these installation guidelines:
-
Separate Connection Boxes: It is highly recommended to install power supply and communication lines in separate IP65 (NEMA 4) rated junction boxes.
-
Flexible Conduit Connection: Use flexible conduits/connectors to link the junction boxes to the telephone unit. This prevents mechanical stress on the cable glands and provides superior protection against vibration, moisture, and dust.
-
Interference Prevention: Keeping high-voltage power lines separate from low-voltage communication cables (SIP/Analog) ensures clear audio transmission and prevents signal interference.
-
