LC105-KB-4G Outdoor 4G LTE Emergency Phone with LCD Status Display
Industrial Cellular Communication for Remote and Harsh Environments | 4G LTE | IP67 · NEMA 4X equivalent · IK10 · CE · FCC · RoHS · ISO 9001 Standards | 2-Year Warranty
The LC105-KB-4G Outdoor 4G LTE Emergency Phone with LCD Status Display is a rugged industrial communication device designed for reliable voice connectivity in locations where wired infrastructure is unavailable or difficult to deploy.
Using 4G LTE cellular communication, this phone enables dependable voice communication for remote industrial sites, outdoor installations, and infrastructure projects. Its die-cast aluminum alloy housing and weatherproof construction ensure reliable operation in environments exposed to dust, moisture, vibration, corrosion, and extreme temperatures.
The integrated 128 × 64 LCD status display and full rubber keypad allow operators to dial numbers, view call status, and operate the device even while wearing protective gloves or working in demanding industrial conditions.
Key Features
Rugged die-cast aluminum alloy industrial enclosure
IP66 / IP67 weatherproof protection (NEMA 4X equivalent)
IK10 impact resistance for vandal-resistant installations
128 × 64 LCD status display
Full rubber keypad with programmable speed dial buttons
4G LTE cellular communication (sim card required)
Noise-cancelling microphone for clear communication in noisy areas
Armored handset cord – 32.7 in (83 cm)
Hearing Aid Compatible (HAC) handset
Magnetic reed hook switch
Externally mounted SMA antenna with 2 m cable
Three M20 cable gland entry points
Wall mounting with mounting bar
Reliable 4G LTE Cellular Communication
The LC105-KB-4G Outdoor 4G LTE Emergency Phone with LCD Status Display communicates through cellular networks, making it ideal for installations where VoIP or wired telephone infrastructure is not available.
Key communication capabilities include:
4G LTE cellular connectivity
Remote configuration via SMS
Centralized management and monitoring
Programmable auto-dial emergency numbers
Automatic call timeout control (6–8 minutes configurable)
Remote diagnostic reporting
The phone can transmit diagnostic notifications via message, including:
Low battery voltage alerts
Weak cellular signal detection
Speaker volume status
Microphone volume status
These capabilities support remote monitoring and maintenance of emergency communication systems.
Designed for Harsh Industrial and Outdoor Environments
The LC105-KB-4G Outdoor 4G LTE Emergency Phone with LCD Status Display is engineered for reliable operation in environments exposed to:
High humidity and condensation
Dust and airborne contaminants
Mechanical vibration and shock
Extreme temperatures
Salt-air and corrosive atmospheres
Heavy industrial use or attempted vandalism
A durable polyurethane exterior finish provides additional protection against environmental damage and helps extend service life in demanding installations.
Typical Applications
This Outdoor 4G LTE Emergency Phone with LCD Status Display is commonly used in locations where reliable cellular communication is required:
Remote industrial facilities
Construction sites and infrastructure projects
Public highways and roadside emergency points
Mining operations and underground tunnels
Offshore wind farms and marine installations
Power stations and energy facilities
Chemical processing plants
Ports and container terminals
Industrial cranes and bulk material handling equipment
Simple Installation and Deployment
The phone is designed for fast and straightforward installation in outdoor and industrial environments.
Installation features include:
12V DC power supply
Externally mounted cellular antenna with 2 m cable
Three M20 cable gland entry points for wiring
Wall mounting with mounting bar
Remote configuration via SMS
These features allow the phone to be installed in locations without wired networks while maintaining centralized configuration and monitoring.
Built for Long-Term Reliability
The LC105-KB-4G Outdoor 4G LTE Emergency Phone with LCD Status Display is engineered for continuous operation in demanding environments.
Operating temperature: -40°F to 149°F (-40°C to 65°C)
Storage temperature: -40°F to 167°F (-40°C to 75°C)
Ringing volume: 90 dB(A) at 1 meter
MTBF: exceeds 50,000 hours (more than 5.7 years of continuous operation)
This durability makes the phone suitable for mission-critical outdoor communication systems.
Global 4G Module Compatibility
The phone supports LTE modules with regional frequency bands, enabling operation on cellular networks worldwide, including:
North America
Europe
Asia
Latin America
Australia
Japan
Optional GNSS support may include GPS, GLONASS, BeiDou, Galileo, and QZSS, depending on the installed module.
Available Customizations & Accessories (on request)
Body colors: Red, Orange, Green, Blue, Black (RAL options available)
Custom marking: Silk-printed labels, logos, or safety instructions
Direct call buttons: One, two, or three emergency buttons
Alert systems: External strobe beacon and high-output loudspeaker
Environmental accessories: Acoustic hoods and heavy-duty mounting pillars
Order Information
LC105-KB-4G – Outdoor 4G LTE Emergency Phone with LCD Status Display, full keypad, 4G cellular communication, externally mounted antenna and power supply included, yellow.

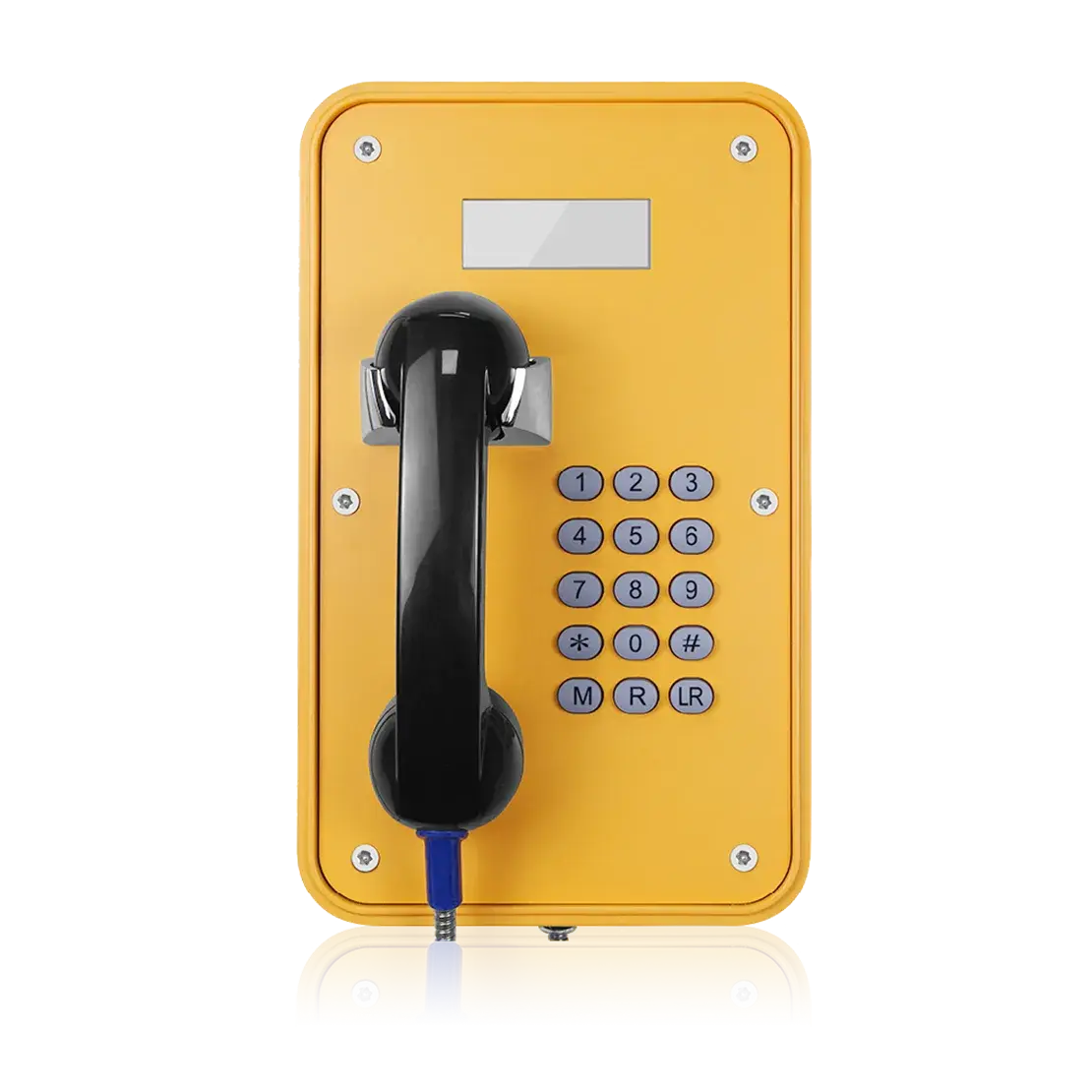

LC105-KB-4G IP67 Outdoor 4G LTE Emergency Phone with LCD Status Display
Power & Electrical
-
Power supply: 12V DC
-
Adapter input: 7.4–12V DC
-
Power consumption:
-
Idle: 0.3 W
-
Active: 1.5 W
-
Cellular Communication
-
Communication mode: 4G LTE
-
Working frequency: Depends on installed LTE module
-
Ringing tone: 90 dB(A) @ 1 meter
-
External antenna: Quad-band SMA male with 2 m cable
Configuration & Management
-
Remote configuration via SMS
-
Centralized remote management
-
Auto-dial emergency numbers
-
Configurable call time limit: 6–8 minutes
-
Remote diagnostic reporting
Diagnostic messages may include:
-
Low battery voltage
-
Weak cellular signal
-
Speaker volume status
-
Microphone volume status
LTE Module Compatibility
Supported regional modules include:
-
EC25-A / EC25-AF / EC25-AFX / EC25-AUX / EC25-MX – North America / Latin America
-
EC25-E / EC25-EU / EC25-EUX – Europe / EMEA
-
EC25-J – Japan
-
EC25-V – Verizon networks
GNSS Support (Module Dependent)
-
GPS
-
GLONASS
-
BeiDou (Compass)
-
Galileo
-
QZSS (optional)
Environmental
-
Operating temperature:
-40°F to 149°F (-40°C to 65°C) -
Storage temperature:
-40°F to 167°F (-40°C to 75°C)
Reliability
-
MTBF: > 50,000 hours
-
Equivalent to more than 5.7 years of continuous 24/7 operation
Physical Specifications
-
Unit size:
8.03 × 13.15 × 5.63 in
(204 × 334 × 143 mm) -
Shipping dimensions:
7.87 × 11.81 × 17.32 in
(200 × 300 × 440 mm) -
Weight:
-
Net: 11.02 lb (5 kg)
-
Gross: 13.23 lb (6 kg)
-
-
