LC103-DB Open-Face Industrial Weatherproof Hotline Phone (Analog/SIP/4G LTE)
Reliable Emergency Communication for Industrial Facilities | Analog · SIP/VoIP · 4G LTE | IP67 · NEMA 4X equivalent · IK10 · CE · FCC · RoHS · ISO 9001 | 2-Year Warranty
The LC103-DB Series is a heavy-duty, open-face industrial hotline phone designed for instant emergency communication in steel plants, mining, and large warehouse terminals. Unlike standard models, its no-door design ensures immediate access to communication in critical situations, even when wearing industrial gloves.
Built with a corrosion-resistant aluminum alloy enclosure and IP67-rated environmental protection (NEMA 4X equivalent), this phone is engineered for the harshest conditions—extreme temperatures, high humidity, dust, and vibration. It features a vandal-resistant armored handset to prevent damage in high-traffic or unmonitored areas.
The LC103-DB Open-Face Industrial Weatherproof Hotline Phone (Analog/SIP/4G LTE) provides:
• One, Two or Three programmable hotline buttons for immediate connection to predefined numbers
• Clear full-duplex two-way communication for loud industrial environments
• High-visibility emergency interface for fast operation under stress
• Reliable voice transmission even in noisy production areas
Why Choose LC103-DB
Industrial-grade aluminum enclosure resistant to impact, corrosion, and vandalism
IP67 (NEMA 4X equivalent) weatherproof protection and IK10 impact resistance for indoor and outdoor deployment
High acoustic output with noise-cancelling microphone, ensuring intelligible calls without additional accessories
Proven Reliability: Industrial-grade components with an MTBF exceeding 50,000–65,000 hours (5.7 - 7.4 years of continuous 24/7 operation).
Multiple communication options in one platform
– Analog (PSTN / PABX)
– SIP / VoIP (RFC 3261, PoE IEEE 802.3af)
– 4G LTE for remote or infrastructure-limited sitesWide temperature tolerance from −40°C to +65°C (−40°F to +149°F), reducing failure risk in extreme climates
Low maintenance design with armored handset cord and magnetic reed hook switch
Consistent mechanical form factor across all versions, simplifying drawings, BOMs, and substitutions
Designed for Mission-Critical Infrastructure
This terminal is the professional choice for projects where environmental failure is not an option:
Maritime & Ports: Corrosive salt-air environments and high-moisture river docks.
Heavy Industry: Steel mills, manufacturing plants, and power utilities.
Transport: Airports, transit tunnels, and rail platforms.
Public Safety: Parking garages, stadiums, and roadside emergency points.
Integration Technologies (One Platform — Three Options)
1. SIP / VoIP Option (LC101-DB-S)
Power: PoE (IEEE 802.3af) or 12V DC.
Protocol: SIP 2.0 (RFC 3261); compatible with Cisco, Avaya, Siemens, and Asterisk.
Management: Browser-based Web-UI for remote diagnostics and configuration.
Control: Two integrated relays for remote control of external hardware (gates, sirens).

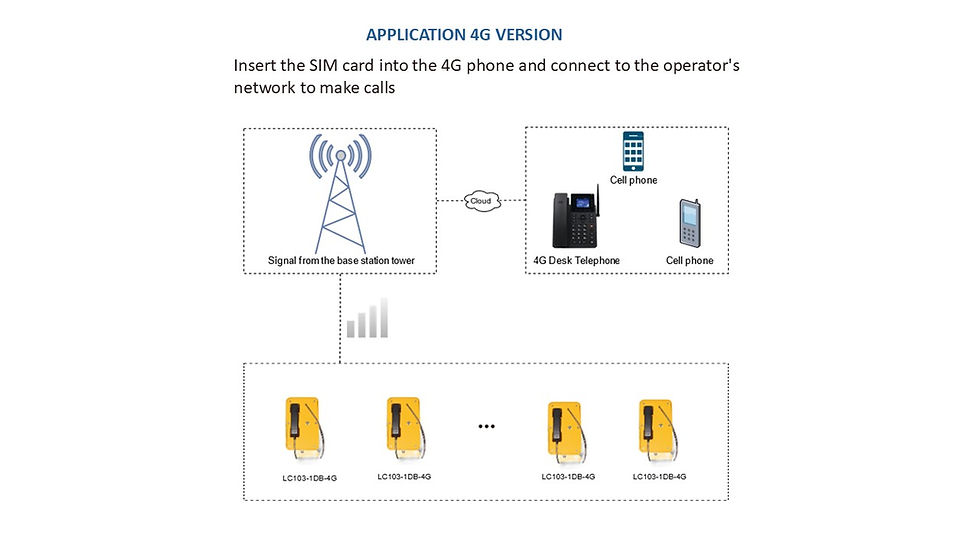

2. 4G Cellular Option (LC101-DB-4G)
Connectivity: Independent 4G LTE operation via standard SIM card.
Off-Grid Ready: Powered by 12V DC; optional solar and battery backup kits available.
Monitoring: Remote SMS reporting for battery voltage, signal strength, and volume.
Regional Support: Specific variants for North America (Verizon, AT&T, T-Mobil etc.).

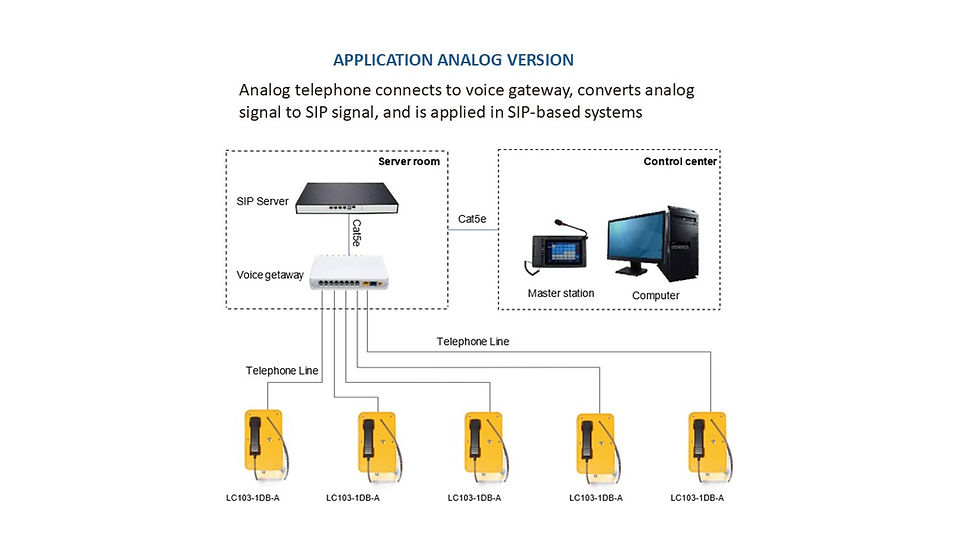

3. Analog Option (LC101-DB-A)
Power: 100% line-powered (PSTN / PABX); requires no external power source.
Features: Supports call transfer, automatic dialing with delay, and line-powered external light control.
Installation & Mounting
Versatile Mounting: Native support for Wall or Pole installation.
Cable Entry: Bottom cable gland access point ensures protected, tamper-proof wiring.
Fast Deployment: Internal fast-terminal connections reduce labor time and field installation costs.
Available Customizations & Accessories (on demand):
Body Color: Red, Orange, Green, Blue, Black (RAL colors available).
Custom Inscription: Personalized robust silk printed text, logos, or labels.
Power Solutions: Integrated Solar Power kits or Built-in Backup Battery (3–5 days standby) - for 4G models.
One, Two or Three direct buttons, LCD display
Alert Systems: External Strobe Light (Beacon) and High-Output Loudspeaker integration.
Environmental Add-ons: Acoustic Hoods for noise reduction and heavy-duty Mounting Pillars/Bollards.
Order Information:
- LC103-(1,2 or 3)DB-SIP - Industrial Weatherproof Hotline Phone, (1, 2 or 3) buttons, SIP/PoE Powered, yellow
- LC103-(1,2 or 3)DB-A - Industrial Weatherproof Hotline Phone, (1, 2 or 3) buttons, Analog Line-Powered, yellow
- LC103-(1,2 or 3)DB-4G - Industrial Weatherproof Hotline Phone, (1, 2 or 3) buttons, 4G LTE Wireless, power supply and antenna included, yellow
LC103-DB Open-Face Industrial Weatherproof Hotline Phone (Analog/SIP/4G LTE)
Available Versions (choose during checkout):
-
Analog
-
SIP/VoIP
-
Cellular (GSM/4G)
🔧 Common Features (All Versions)
-
Weatherproof and corrosion-resistant cast aluminum housing (IP67 rated)
-
Vandal-resistant handset made from molded BMC with armored cord
-
Magnetic hook switch with no moving parts for extended durability
-
1, 2 or 3 programmable stainless steel auto-dial buttons
-
Built-in inductive coupler for hearing aid compatibility
-
Loud ringer: 90–95 dB(A) at 1 m (110 dB(A) with external horn speaker)
-
Operating temperature: -40°C to +65°C / -40°F to +149°F
-
Storage temperature: -45°C to +75°C / -49°F to +167°F
-
Wall-mountable, simple surface installation
-
MTBF: Over 50,000 - 65,000 hours
-
Certifications: CE, FCC, RoHS, ISO9001
-
Unit size: 334 × 204 × 105 mm / 13.15 × 8.03 × 4.13 in
-
Packaging: 200 × 300 × 440 mm / 7.9 × 11.8 × 17.3 in
-
Net weight: 5 kg / 11 lbs
-
Gross weight: 6 kg / 13.2 lbs
📞 Analog Version
-
Compatible with standard 2-wire analog lines, analog PBX, PSTN
-
Power supplied by telephone line
-
Voltage range: 24–65 VDC
-
Current draw: 20–100 mA DC
-
DTMF dialing (per ITU-T Q.23)
-
Ringer volume: 80 dB(A) at 1 m (110 dB(A) with external speaker)
🌐 SIP/VoIP Version
-
Compatible with SIP 2.0 (RFC3261), supports PBX systems like Avaya, Cisco, NEC, Panasonic
-
RJ45 Ethernet port for network connection
-
Power supply: PoE or 12V DC
-
Power consumption: Idle 1.5W, Active 1.8W
-
Supported codecs: G.711 A/U, G.722, G.723, G.729
-
Full-duplex communication
📡 Cellular (GSM / 4G) Version
-
Wireless communication via GSM / 3G / 4G
-
Ideal for remote locations, no wiring needed
-
Power supply: 12V DC
-
Power consumption: Idle 0.3W, Active 1.5W
-
Full-duplex communication
-
Remote programming via SMS
-
Available frequency versions:
-
A Version: WCDMA 850/1900 MHz + GSM Quad-Band
-
E Version: UMTS 900/2100 MHz + GSM Quad-Band
-
J Version: UMTS 850(800)/2100 MHz + GSM Quad-Band
-
-
Operating temperature: -25°C to +70°C / -13°F to +158°F
-
Storage temperature: -25°C to +85°C / -13°F to +185°F
🎨 Customization Options
-
Body color: Yellow (standard); custom colors like red, green, blue, black available on request (MOQ applies)
-
Custom labels or engraving on phone body
-
