Vandal-Proof Emergency Hotline Telephone (SIP, 4G, Analog)
Ultra-Rugged Hotline Communication for Critical Environments
The LC202-AD Series is a heavy-duty, hotline emergency telephone engineered for environments where communication failure is not an option. Housed in a corrosion-resistant steel enclosure, it provides a direct, instant link to help the moment the handset is lifted.
Who is it for?
This series is the ideal choice for facility managers, security directors, and infrastructure engineers overseeing high-risk or public-facing locations, including:

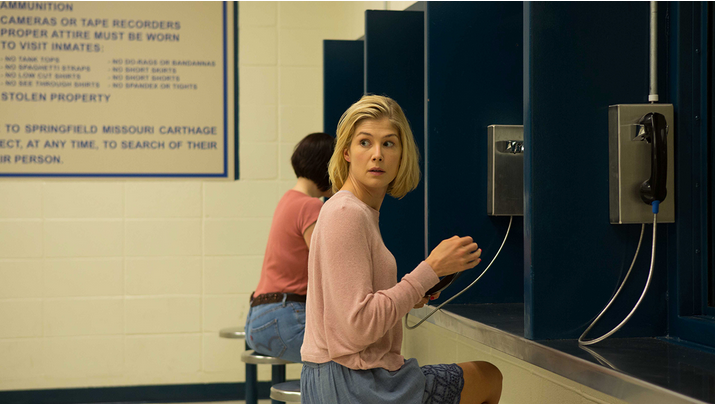

Correctional Facilities & Police Stations
Public Infrastructure: Railway platforms, metro stations, and airports.
Urban Safety: Parking lots, stadiums, and shopping malls.
Critical Services: Hospitals, ATM kiosks, and highway SOS points.
The Solution: One Lift, Instant Response
The Problem: In emergencies, manual dialing causes delays, and standard equipment is easily destroyed by vandals or harsh weather. The Solution: The LC202-AD eliminates hesitation with a direct-dial (Hotline) feature. It solves the pain of high maintenance costs and equipment downtime by using a "tank-like" construction that ensures 24/7 availability in any environment.
Why Choose the LC202-AD Series?
Vandal-Proof Engineering: Built with a cold-rolled or stainless steel box and an 83 cm armored cord capable of withstanding heavy industrial use and intentional damage.
Crystal Clear Audio: Equipped with a proprietary digital noise cancellation system and a noise-cancelling microphone, ensuring loud, clear calls even in deafening industrial settings.
Extreme Reliability: Provides over 50,000 hours of uninterrupted MTBF and is fully electrically isolated with electromagnetic shielding to prevent interference or whistling.
Weather & Environmental Protection: Designed to operate in extreme temperatures from -40F to 149F (-40°C to +65°C) with a corrosion-resistant finish.
Plug-and-Play Installation: Simple wall-mounted design that integrates seamlessly into existing infrastructures.
Versatile Connectivity Options
One chassis, three technologies. Select the version that fits your network:
Analog (PSTN): Cost-effective deployment using existing analog lines; compatible with standard PABX systems.
SIP (VoIP): Fully tested for seamless integration with leading providers like Cisco, Avaya, NEC, and Panasonic via PoE.
4G LTE (Wireless): The perfect solution for remote locations without IT infrastructure. Requires only a SIM card and power for instant connectivity.
Technical Highlights
Warranty: 2-year manufacturer warranty.
Compliance: Hearing Aid Compatible (HAC) handset.
Durability: Magnetic reed hook-switch for long-term mechanical life.
Customization: Standard Grey finish; custom colors available upon request.
LC202-AD Vandal-Proof Emergency Hotline Telephone (SIP, 4G, Analog)
Analog Version – Unified Specification
General
-
Housing Material: Cold-rolled steel or stainless steel on demand (SUS304)
-
Protection: Vandal-resistant design, electromagnetic shielding, full electrical isolation
-
Handset: ABS handset with noise-cancelling microphone
-
Handset Cord: 83 cm (32.6") armored cord
-
Keypad: No keypad
-
Hook-switch: Magnetic reed hook-switch (heavy-duty)
-
Audio: Clear, loud voice without acoustic feedback; HAC compatible
-
Vandal Resistance: Reinforced armored handset cord
Performance
-
Operating Temperature: −40°C to +65°C (−40°F to +149°F)
-
Storage Temperature: −40°C to +75°C (−40°F to +167°F)
-
Ringing Volume: 80 dB(A) @ 1 m
-
MTBF: > 50,000 hours
Connectivity
-
Power Supply: Drawn from analog telephone line
-
Operating Current: 20–100 mA DC
-
Dialing: Pulse Dial (PD) or DTMF (ITU-T Q.23)
-
Configuration: Remote configuration via DTMF tones
-
Diagnostics: Programmable auto hang-up
Physical
-
Mounting: Wall-mounted
-
Unit Dimensions: 240 × 100 × 133 mm (9.45" × 3.94" × 5.24")
-
Net Weight: 3 kg (6.61 lbs)
SIP (VoIP) Version – Unified Specification
General
-
Housing Material: Corrosion-resistant cold-rolled steel or stainless steel (SUS304)
-
Protection: Vandal-resistant enclosure, electromagnetic shielding, electrical isolation
-
Handset: ABS handset with noise-cancelling microphone
-
Handset Cord: 83 cm (32.6") armored cord
-
Keypad: No keypad
-
Hook-switch: Magnetic reed hook-switch
-
Audio: High-clarity, echo-free voice; HAC compatible
Performance
-
Operating Temperature: −40°C to +65°C (−40°F to +149°F)
-
Storage Temperature: −40°C to +75°C (−40°F to +167°F)
-
Ringing Volume: 90 dB(A) @ 1 m
-
MTBF: > 50,000 hours
Connectivity
-
Power Supply: PoE (IEEE 802.3af) or 12V DC
-
Power Consumption: Idle 1.5 W / Active 1.8 W
-
Protocol: SIP 2.0 (RFC 3261)
-
Configuration: Web interface and SNMP
-
Management: Remote network monitoring and diagnostics
Physical
-
Mounting: Wall-mounted
-
Unit Dimensions: 240 × 100 × 133 mm (9.45" × 3.94" × 5.24")
-
Net Weight: 3 kg (6.61 lbs)
4G LTE Version – Unified Specification
General
-
Housing Material: Corrosion-resistant cold-rolled steel or stainless steel (SUS304)
-
Protection: Anti-vandal design, EMC shielding, full electrical isolation
-
Handset: ABS handset with noise-cancelling microphone
-
Handset Cord: 83 cm (32.6") armored cord
-
Keypad: No keypad
-
Hook-switch: Magnetic reed hook-switch
-
Audio: Clear, loud voice; HAC compatible
Performance
-
Operating Temperature: −40°C to +65°C (−40°F to +149°F)
-
Storage Temperature: −40°C to +75°C (−40°F to +167°F)
-
Ringing Volume: 90 dB(A) @ 1 m
-
MTBF: > 50,000 hours
Connectivity
-
Power Supply: 12V DC (adapter range 7.4–12V DC)
-
Power Consumption: Idle 0.3 W / Working 1.5 W
-
Dialing: Auto-dial numbers
-
Configuration: Remote configuration via SMS and monitoring platform
-
Diagnostics: Battery level, signal strength, volume status
4G LTE Modules
-
EMEA / Korea / Thailand: EC25-E — LTE-FDD B1 / B3 / B5 / B7 / B8 / B20
-
North America: EC25-A — LTE-FDD B2 / B4 / B12
-
Latin America / Australia: EC25-AUX — LTE-FDD B1 / B2 / B3 / B4 / B5 / B7 / B8 / B28
Physical
-
Mounting: Wall-mounted
-
Unit Dimensions: 240 × 100 × 133 mm (9.45" × 3.94" × 5.24")
-
Net Weight: 3 kg (6.61 lbs)
-
