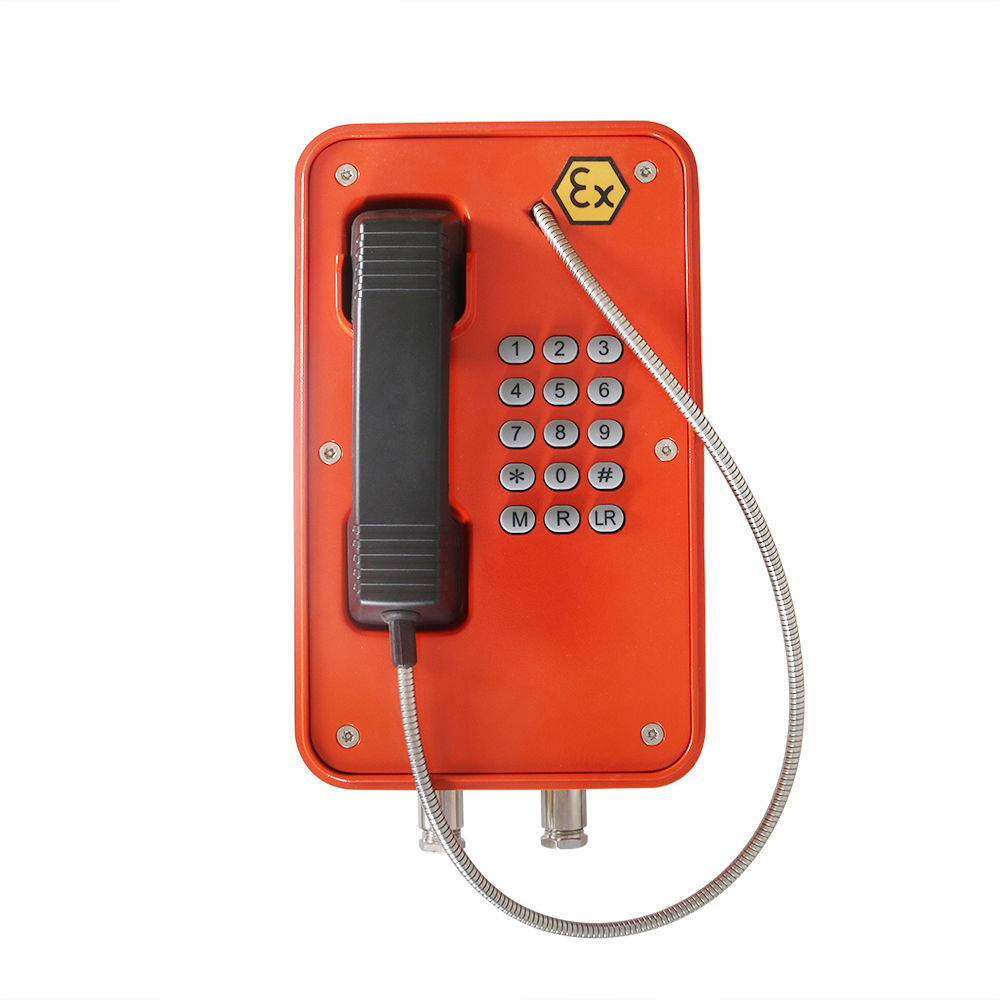

LC106EX-03-KB Explosion-Proof Industrial Telephone (SIP or Analog), red

Versions: Analog & SIP (VoIP)



General



• Application: Hazardous & explosive environments (Zone 1 / Zone 2 / Zone 22)

• Certifications: ATEX, IECEx, EAC, INMETRO

• Explosion Protection:

  • Gas: Ex eb ib [ib Gb] mb IIC T6/T5 Gb

  • Dust: Ex ib [ib Db] tb IIIC T80°C/T95°C Db

• Ingress Protection: NEMA 4X / IP66 (Weatherproof & Corrosion-resistant)

• Housing: Die-cast aluminum alloy, epoxy powder coated

• Handset: Vandal-resistant Cycoloy with stainless steel spiral cord

• Mounting: Wall or pole mounted

• Cable Entry: 3 × M20 glands (bottom entry)

• Operating Temperature:

  • −40°C to +65°C (−40°F to +149°F)

• Storage Temperature:

  • −40°C to +75°C (−40°F to +167°F)

• MTBF: > 50,000 hours

• Weight: up to 8 kg (≈ 17.6 lb), depending on configuration

• Keypad: Full numeric keypad (15 keys)

• Hearing Aid Compatible: Inductive coupler as standard



SIP (VoIP) Version – Key Specifications



• Protocol: SIP 2.0 (RFC 3261)

• Compatibility: AVAYA, Cisco, Siemens, NEC and most SIP-based IP-PBXs

• Power Supply:

  • PoE IEEE 802.3af or 12 VDC

  • Adapter: 100–240 VAC, 50/60 Hz → 12 VDC

• Power Consumption:

  • Idle: 1.5 W

  • Active: 1.8 W

• Network Interface:

  • 2 × RJ-45, 10/100Base-T (Auto-MDIX)

• Voice Codecs: G.711 A/U, G.722 (HD), G.723, G.729

• Audio:

  • HD voice

  • Echo cancellation (G.168)

  • Noise reduction

• Call Functions:

  • Auto-dial & sequential calling

  • Call transfer

  • MIC mute

  • Primary / backup SIP server switching

• Ringing Volume: up to 95 dB(A) @ 1 m (≈ 3.3 ft)

• Management:

  • Web-based configuration

  • DHCP / Static IP

  • VLAN support

  • Firmware upgrade via browser



Analog Version – Key Specifications



• Line Powered: No external power supply required

• Operating Voltage: 24–65 VDC

• Operating Current: 20–100 mA DC

• Ringing Voltage: 48–90 VAC, 21–54 Hz

• Ringing Volume: up to 80 dB(A) @ 1 m (≈ 3.3 ft)

• Dialing: DTMF or Pulse (ITU-T Q.23 compliant)

• Compatibility: All standard PABX systems

• Functions:

  • Auto-dial with delay

  • Scheduled test calls (line supervision)

  • Remote programming via keypad or DTMF

  • MIC mute

  • Call transfer

• Line Protection: Lightning & surge protection per ITU-T K.21
